  • Condensate pump Sauermann Si-27 Mini

The Symbol : 12950479301

Si-27 condensate pump designed for air conditioners with a power of up to 20kW The piston structure has been designed to drain condensate from air conditioning systems.

289.00
opak Add to wishlist
Reviews
Shipping within 24 hours
Shipping price The Lack Of
The Availability Of Duża dostępność
The Weight Of The 0.15 kg
EAN 3700543256120

Phone order: +48606376838

Condensate pump Sauermann Si-27 Mini

Si-27 condensate pump designed for air conditioners with a power of up to 20kW

The piston structure has been designed to drain condensate from air conditioning systems. The condensate pump fully works in all conditions, and the accompanying sound is quiet, regardless of the amount of condensate pumped.

Characteristics:

  • Patented technology
  • High efficiency: a unique product that works with air conditioners with a power of up to 20kW, 67kBtu – 5.6RT.
  • High resistance to contamination in all conditions. It can drain water with fine particles.
  • Proven reliability.
  • Quiet operation (20dBA)
  • Low operating noise (20dBA, tested by an independent laboratory).
  • The efficiency of the air conditioner and the amount of condensate drained do not affect the volume
  • Simple installation
  • Compact design.
  • The pump mounting plate allows it to be attached to a wall, pipe or suspension.
  • Removable electrical cord for easy maintenance and replacement.
  • Protected connection socket.
  • Energy saving
  • The high flow rate reduces the operating time, which translates into lower energy consumption.

Specifications:

  • Maximum capacity: 20l/h
  • Maximum suction height: 3m
  • Maximum discharge head: 10m (capacity = 4l/h)
  • Maximum delivery height: 14m (capacity = 0l/h)
  • Sound pressure level (distance 1m) according to EN ISO 3744: 20dBA
  • Power supply: 230V, 50/60Hz – 14W
  • Insulation class: double insulation
  • Switching levels: on – 16mm, off – 11mm, protection: 19mm
  • Alarm output: resistive NA – NC 8A – 250V
  • Thermal protection: 90°C (automatic restart)
  • Duty Cycle: 100% (Continuous Operation)
  • Protection: IP20
  • RoHS compliant: Yes
  • WEEE compliant: yes
  • Safety standards: CE/EAC
  • Packaging: 0.48kg – length 136mm, width 135mm, height 90m

Set contents:

  • Piston Pump
  • Mounting plate
  • 0.8m electrical cable with plug
  • Transparent PVC tube with inner diameter 6mm, length 1.5m
  • 6 cable ties
  • SI2958 sensor (1.5m power cable)
  • Sensor mounting kit:
  • connection with an inner diameter of 15mm, length 35mm
  • transparent tube with an inner diameter of 4mm, length 75mm
  • mounting rails
  • adhesive tape

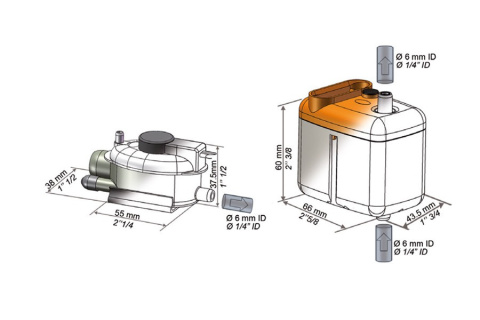

Dimensions of the pump:




Brand:
Sauermann
Status:
New
Waga produktu z opakowaniem jednostkowym:
0.3 (2)
Zalecana maksymalna wielkość pomieszczenia:
50
Moc chłodzenia:
3000
Moc ogrzewania:
3000
Przepływ powietrza:
300
Kod producenta:
Pompka skroplin Si-27
Packaging Condition:
oryginalne
Zdolność osuszania:
20
Energy efficiency class:
A+
Voltage / Power:
230V
