IZOFLEX PRO fi 315, diameter D 318 mm according to the card. Episode 10 m ±2%, mineral wool insulation 25 mm. For ventilation and air conditioning, from −30 to +150°C.
The Availability Of : Duża dostępność 895 opak
Price: 249.00
Price: 249.00

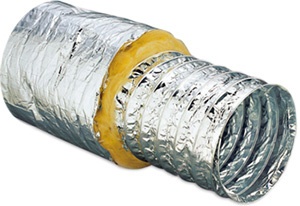

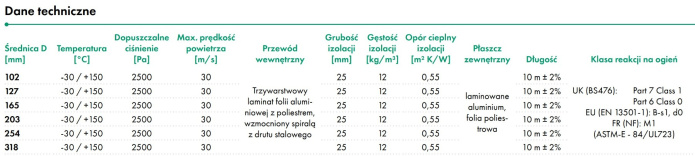

IZOFLEX PRO in offer size 315 is a flexible wire with thermal insulation for ventilation and air conditioning installations. For this variant, the D 318 mm diameter was adopted from the table attached to the card. Mineral wool with a thickness of 25 mm isolation.
The cable is primarily designed for final sections of the air system, including connections to expansion boxes and air vents. Flexible design facilitates connection and reduces the need for rigid shapes. According to the card, it also helps to reduce the vibration transfer of the installation.

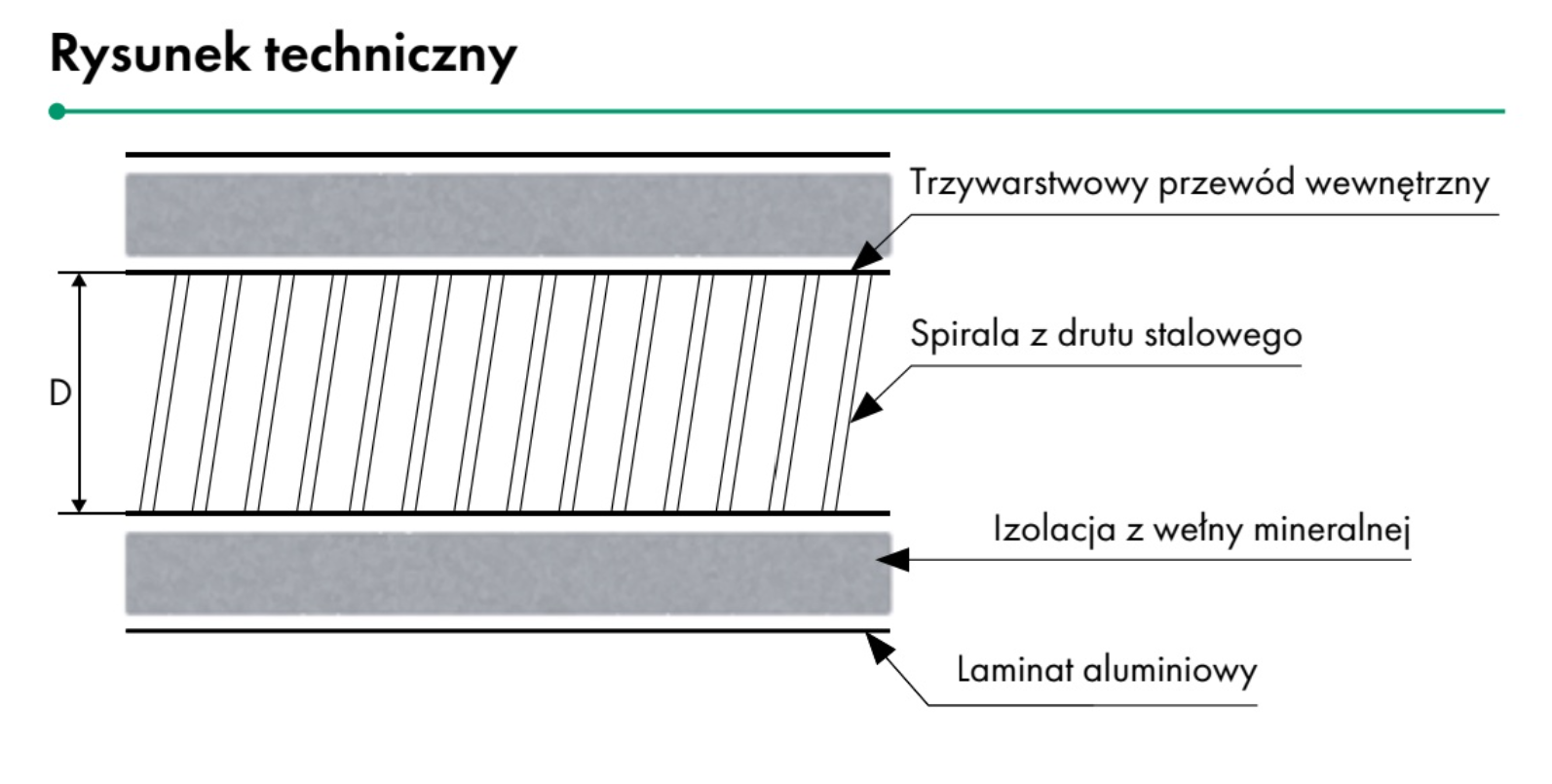

The inner wire creates a three-layer laminate of aluminium foil with polyester, reinforced with a coil of steel wire. It's surrounded by mineral wool. The outer coat consists of laminated aluminium and polyester film.
Size 315 in offer and diameter D 318 mm in the card are given separately. Before mounting, compare the diameter of the cable with the size of the connector. The medium temperature range according to the card ranges from −30°C to +150°C; the 140stC designation in the offer name is not the value prescribed from this card.
The IZOFLEX PRO card describes a three-layer internal wire and thermal insulation. It does not provide perforation or sound suppression parameters, therefore this product should not be selected on the basis of a declaration specific to acoustic cables.
General safety rules for fittings, ducts, grilles and mounting accessories for ventilation
Elements of ventilation systems, such as fittings, ducts, ventilation grilles and mounting accessories, have been designed to ensure proper air circulation in buildings.
Correct installation and operation are crucial for the safety of users and the performance of the entire system.
Principles of safe use and installation
Installation by qualified persons only
All installation works should be carried out by people with experience in the installation of ventilation systems and knowledge of applicable standards.
Safe mounting location
Assemble components according to the design of the ventilation system.
Avoid placing wires and grilles near heat sources, open flames, or devices that emit heat.
Avoiding mechanical damage
Do not bend, deform, or damage the ducts and fittings during assembly.
In the event of visible mechanical damage, the element should not be used.
Protection against moisture and corrosion
Use the elements for their intended purpose – in rooms exposed to moisture, use fittings and ducts made of corrosion-resistant materials.
Store mounting accessories in dry and clean conditions.
Proper fixation and stabilization
All system components must be installed stably and in accordance with the manufacturer's instructions.
Improper fastening can lead to loose ductwork, reduced ventilation performance or structural damage.
Safety at work at height
When installing grilles or cables under the ceiling, appropriate safety safeguards such as stable ladders, scaffolding and personal protective equipment must be used.
Potential risks
Falling of elements – resulting from improper fastening of wires, fittings or grilles.
Mechanical damage – caused by improper transport or assembly.
Risk of fire – the use of unsuitable materials in high-temperature areas can lead to damage and fire hazards.
Improper air quality – installation errors can limit proper air circulation and negatively affect the comfort of users.
Maintenance and inspections
Regularly check the condition of wires, fittings, grilles and mounting accessories.
Clean the vents of dust and debris to maintain system performance.
If damage is found, replace the components with new ones in accordance with the manufacturer's recommendations.
Summary
Proper installation and operation of fittings, ducts, grilles and ventilation accessories guarantee the safety of users, system efficiency and long service life of the installation.
Compliance with the above rules minimizes the risk of failure and ensures comfortable and safe air exchange in rooms.
