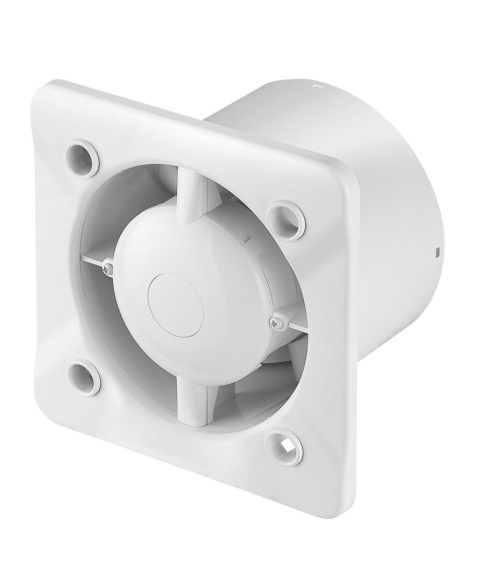

• Bathroom fan body SYSTEM+ KWS125H Higro Timer

The Symbol : 310193

The body of the System+ KWS 125 bathroom fan with the Higro + Timer moisture sensor with a connection diameter of 125 fi, the body of a silent fan on which we can apply a decorative modern panel.

opak Add to wishlist
Shipping within 24 hours
Shipping price The Lack Of
The Availability Of Duża dostępność
The Weight Of The 0.4 kg
EAN 5905033310193

Phone order: +48606376838


Fan body for SYSTEM+ panels model KWS Silent


The System+ bathroom fan is a proprietary solution

Awenta companies allowing for extensive individualization and

Adjusting the aesthetics of the fan

or a ventilation grille to arrange the room.

Main features:

  • quiet operation 32dB
  • Abs
  • ball bearings
  • IPX4
  • maximum operating temperature 40°C
  • can be installed on the wall and ceiling
  • 5 year warranty

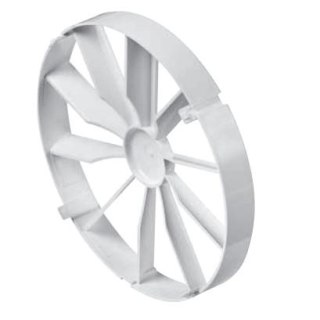

  • possibility to install a non-return valve (ZZ)





The fan is equipped with:

Higro Moisture Sensor and Timer


Fans equipped with a moisture sensor and shutdown delay. The humidity sensor detects humidity between 40% and 90% relative humidity. Depending on how it is connected to the mains, the fan can only be started automatically or manually by the user.

AUTOMATIC STARTING: the device switches on when the humidity level in the room where the fan is installed exceeds the value set on the potentiometer H. The fan switches off after the time specified on the potentiometer T has elapsed, which is counted only from the moment the humidity level in the room drops below the value set on the potentiometer H.

MANUAL STARTING: The fan can also be started by means of a light switch or a separate switch for the fan, even if the humidity level does not exceed the value set on the potentiometer H. After turning off the switch, the device (as in the first case) will turn off after the time specified on the potentiometer T has elapsed, as long as the humidity level in the room is below the level set on the potentiometer H.


Brand Awenta
Status New
Size 125 mm
Shape square
Colour white
Material PCV, Plastic
Hole diameter 125 mm
Kind Wentylacyjne
Waga produktu z opakowaniem jednostkowym 0.4
Power 5
Packaging Condition oryginalne
Energy efficiency class A+
