• Electric duct heaters ECH 160 2.0 kW 1F

The Symbol : 8760796858

Electric duct heater ECH 160 2.0 kW 1F

opak Add to wishlist
Shipping within 24 hours
Shipping price The Lack Of
The Availability Of Duża dostępność
The Weight Of The 4 kg
EAN 5905679890653

Phone order: +48606376838

Round duct heater ECH


Electric heaters are designed to heat clean air. The housing is made of aluzinc, resistant to elevated temperatures. The heating elements are stainless steel. The heater has 2 safety thermostats and screw terminals, the connection pipes are equipped with a gasket. The heaters can be mounted horizontally and vertically. The maximum output temperature is 50°C


The heaters can be mounted in any position, except in the downward-facing junction box position. If there is a possibility of accidental contact with the heating elements, appropriate guards should be used. The velocity of the air flowing through the heater must not be less than 1.5 m/s. The flow of explosive or aggressive gases is prohibited. Heaters can only be used to heat clean air. Devices designed for indoor installations.

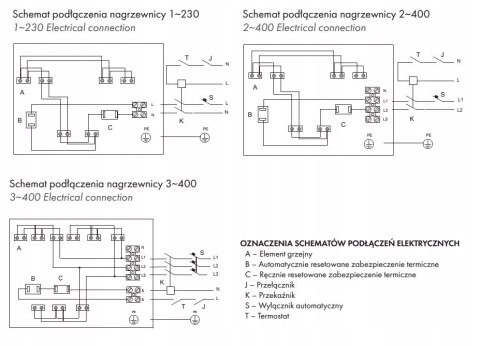

Electrical connection

The electrical connection must be made by a qualified electrician, in accordance with applicable national and international regulations. The power source and power cord must match the data on the rating plate of the heater. The circuit breaker should be selected according to the technical specifications. The heater must be grounded.

Status New
Waga produktu z opakowaniem jednostkowym 3
Klasa energetyczna- chłodzenie A
Moc grzewcza 2
Klasa energetyczna- ogrzewanie A+
Packaging Condition oryginalne
Energy efficiency class A+
