ICM duct TT-125 - 290m3 / h
The TT ICM 125 duct fan is designed for the transport of low-pollution air. It is ideal for supply and exhaust installations of residential and public buildings, offices, shops. The device can also be used for exhaust installations from cooker hoods - the use of grease filters is required
Reviews | |
Shipping within | 24 hours |
Shipping price | The Lack Of |
The Availability Of | Duża dostępność 897 opak |
The Weight Of The | 3 kg |
The bar code | 5904326322691 |
EAN | 5904326322691 |
Phone order: +48606376838

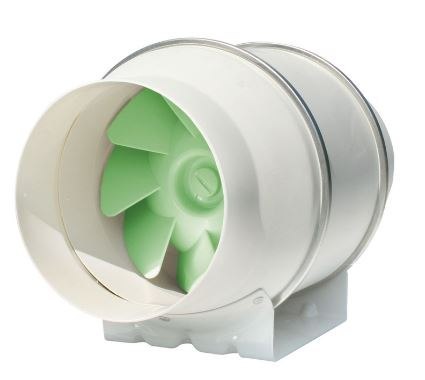

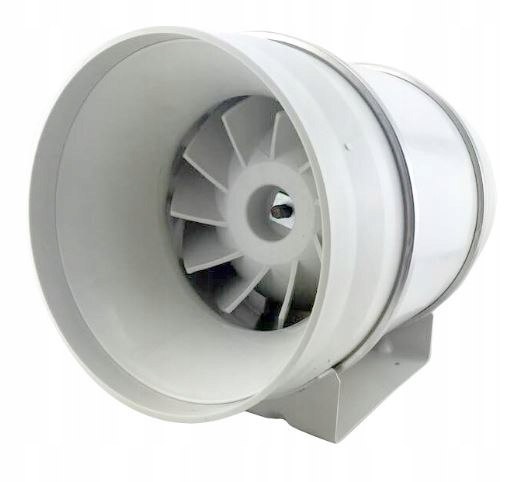

HAVACO ICM 125 duct fan

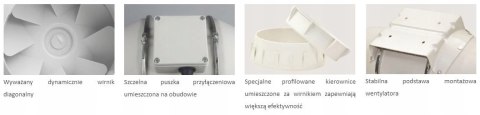

Construction
Duct fan, diagonal. Its unique design makes it possible to achieve high operating parameters with relatively low noise levels and low energy consumption. The fan housing is made of polypropylene, while the impeller is made of ABS plastic. Special connectors make it easy to assemble, disassemble and maintain the device. The device can be installed both horizontally and vertically.
Electric motor
Two-speed motor, powered by single-phase current 230V, 50Hz. Suitable for voltage regulation. IP 44 protection, insulation class B. The motor is equipped with durable ball bearings and thermal winding overload protection.
Use
The ICM fan is designed to transport low-pollution air. It is ideal for supply and exhaust installations of residential and public buildings, offices, shops. The device can also be used for exhaust installations from cooker hoods - the use of grease filters is required
Operating Temperature
The fan is designed to pump air with a temperature not exceeding 60 °C.

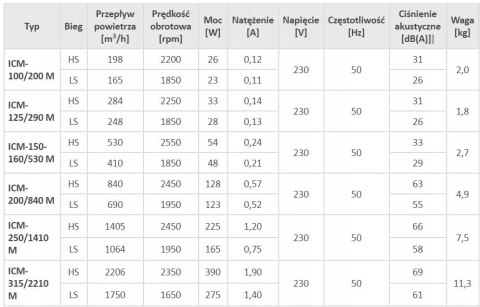

Specifications:

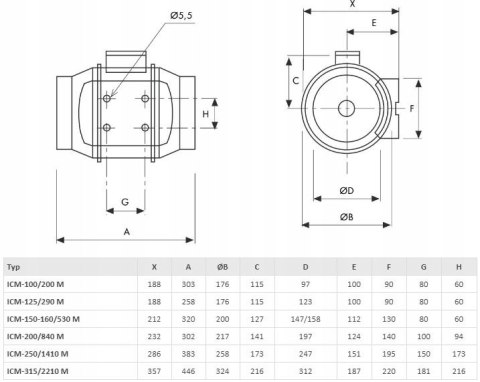

Fan Dimensions :
Dimensions | X | A | ØB | C | ØD | E | F | G | H |
ICM Ø100 | 188 | 303 | 176 | 115 | 97 | 100 | 90 | 80 | 60 |
ICM Ø125 | 188 | 258 | 176 | 115 | 123 | 100 | 90 | 80 | 60 |
ICM Ø150-160 | 212 | 320 | 200 | 127 | 147/158 | 112 | 130 | 80 | 60 |
ICM Ø200 | 232 | 302 | 217 | 141 | 197 | 124 | 140 | 100 | 94 |
ICM Ø250 | 286 | 383 | 258 | 173 | 247 | 151 | 195 | 150 | 173 |
ICM Ø315 | 357 | 446 | 324 | 216 | 312 | 187 | 220 | 181 | 216 |
