air curtain with remote control 90 cm heater 6kW

Manufacturer name: Ferono

(0)

The air curtain ferono FK90E 90cm / 6kW / 230V

Name: The air curtain ferono FK90E 90cm / 6kW / 230V
Brand: Ferono
SKU: 5905036897530
Price: 1269.00 EUR
Availability: InStock

The Symbol : 7211159318

The Availability Of : Duża dostępność 999 opak

Price: 1269.00

Inne modele :

opak

SMS: +48606376838

Shipping within : 24 hours

EAN :

5905036897530

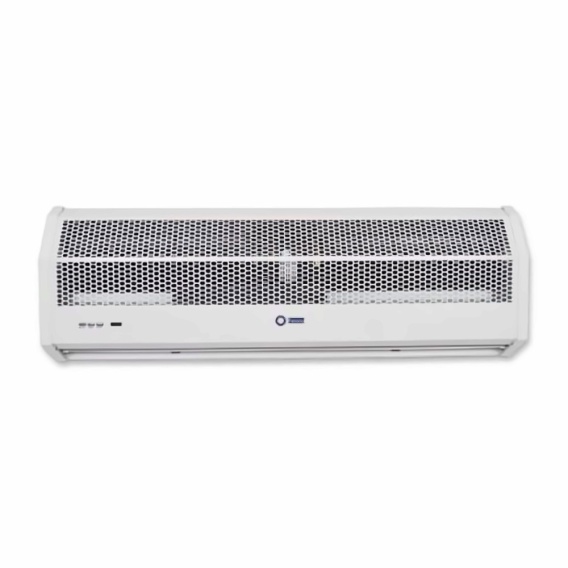

Air curtain FERONO FK90E R15 with electric heater 3/6 kW

Flag model FERONO curtain — effective thermal barrier over doors up to 90 cm wide

Air Curtain FERONO FK90E R15 creates an invisible air barrier that separates the interior from the outside air. Mounted above the entrance, it reduces heat escape in winter and hot air in summer, reducing energy losses even with doors often opened. Productivity 1000 m3/h and a stream of range to 3 meters make it ideal for shops, service outlets, offices and catering facilities.

The device is equipped with energy-efficient 3/6 kW PTC heater, which instantly heats the air vented — the door can remain open and the temperature inside is comfortable.

Key features

PTC 3/6 kW heater — two degrees of heat, quick start and self-regulation of power

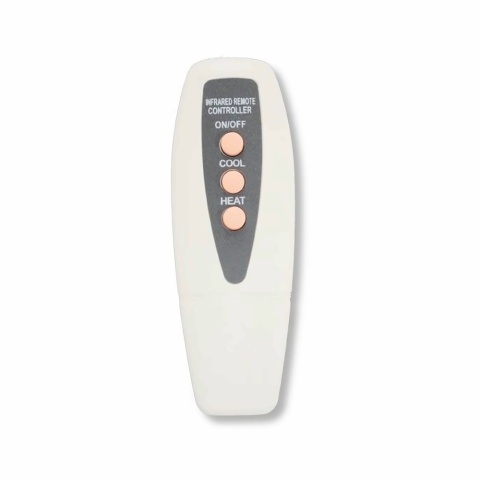

Wireless remote control included — Mode control (cold/warm) and air speed without approaching the device
Potential-free contact Dry Contact — integration with building automation or gate drive
Magnetic contactron included — The curtain is automatically attached when the door is opened
Adjustable stream — precise targeting of the air stream
Cooling technology — The fan cools the heaters after switching off, extending the life of the device
Double security technology — thermal and overvoltage protection

Dimensional drawing

Kurtyna powietrzna FERONO FK90E - wymiary, widok z przodu: szerokość 900 mm, wysokość 195 mm

Kurtyna powietrzna FERONO FK90E - wymiary, widok z boku: głębokość 265 mm, wysokość 195 mm

Technical data

FERONO FK90E R15 — Specification
Model	FERONO FK90E R15
Type	Air curtain with electric heater PTC
Heating power	3 / 6 kW (two heating steps)
Power	230 V / 50 Hz (1-phase)
Fan power	160 W
Max. airflow	1000 m3/h
Max. air speed	11 m/s
Noise level	55-57 dB(A)
Max. mounting height	3 m
Width	900 mm
Height	195 mm
Depth	265 mm
Net / gross weight	14.5 kg / 15,5 kg
Control	Wireless remote control, panel on the device, optional wall controller
Non-potential contact (Dry Contact)	Yeah, built-in.
Magnetic contactron	Yes, in the set

Airflow Speed

Distance from departure	Air speed
0 m (output)	11.0 m/s
1 m	7,0 m/s
2 m	4.5 m/s
3 m	3,0 m/s

Installation and control

Curtain mounted horizontally, above the door opening, up to 3 m high from the floor. The width of the device (90 cm) shall be equal to or greater than the width of the protected opening. Single phase power 230 V does not require a force connection. Thanks to the built-in contact between Dry Contact and the attached contact, the curtain can work fully automatically, starting only with open doors, which further reduces operating costs.

Includes: air curtain FK90E R15, wireless remote control, contracton, mounting handles, instruction manual in Polish.

Parameters :

Packaging Condition:

oryginalne

Status:

New

Typ:

Air Curtain

Safety Information

General safety rules for fittings, ducts, grilles and mounting accessories for ventilation

Elements of ventilation systems, such as fittings, ducts, ventilation grilles and mounting accessories, have been designed to ensure proper air circulation in buildings.
Correct installation and operation are crucial for the safety of users and the performance of the entire system.

Principles of safe use and installation

Installation by qualified persons only
All installation works should be carried out by people with experience in the installation of ventilation systems and knowledge of applicable standards.

Safe mounting location

Assemble components according to the design of the ventilation system.

Avoid placing wires and grilles near heat sources, open flames, or devices that emit heat.

Avoiding mechanical damage

Do not bend, deform, or damage the ducts and fittings during assembly.

In the event of visible mechanical damage, the element should not be used.

Protection against moisture and corrosion

Use the elements for their intended purpose – in rooms exposed to moisture, use fittings and ducts made of corrosion-resistant materials.

Store mounting accessories in dry and clean conditions.

Proper fixation and stabilization

All system components must be installed stably and in accordance with the manufacturer's instructions.

Improper fastening can lead to loose ductwork, reduced ventilation performance or structural damage.

Safety at work at height
When installing grilles or cables under the ceiling, appropriate safety safeguards such as stable ladders, scaffolding and personal protective equipment must be used.

Potential risks

Falling of elements – resulting from improper fastening of wires, fittings or grilles.

Mechanical damage – caused by improper transport or assembly.

Risk of fire – the use of unsuitable materials in high-temperature areas can lead to damage and fire hazards.

Improper air quality – installation errors can limit proper air circulation and negatively affect the comfort of users.

Maintenance and inspections

Regularly check the condition of wires, fittings, grilles and mounting accessories.

Clean the vents of dust and debris to maintain system performance.

If damage is found, replace the components with new ones in accordance with the manufacturer's recommendations.

Summary

Proper installation and operation of fittings, ducts, grilles and ventilation accessories guarantee the safety of users, system efficiency and long service life of the installation.
Compliance with the above rules minimizes the risk of failure and ensures comfortable and safe air exchange in rooms.
