  • Turkan roof fan 160 / 500m3 / 70W / FI160

The Symbol : 8978571882

Turkan Roof Fan 125 /500M3 /63W /FI125, Roof fans with a connection port with a quick and convenient method of installation directly in ventilation ducts. Designed for mechanical air extraction from residential and public spaces.

495.00
opak Add to wishlist
Reviews
Shipping within 24 hours
Shipping price The Lack Of
The Availability Of Duża dostępność
The Weight Of The 2 kg
EAN 5905679891032

Phone order: +48606376838

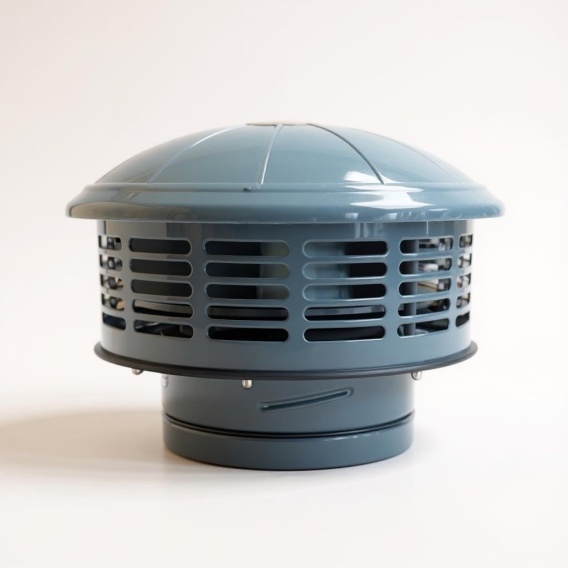

Roof fan - exhaust

type TURKAN 125/k 3-speed fan

CONSTRUCTION

Equipped with a drive unit with ball bearings and an external rotor. Adapted to continuous operation - maintenance-free. The fan front is made of PP plastic with UV stabilizer. The airflow cover is made of aluminum additionally covered with a layer of protective paint. Connection connector equipped with two sealing rings.

INSTALLATION - PURPOSE

Roof fans with a connection connection with a quick and convenient method of installation directly in ventilation ducts. Designed for mechanical air extraction from residential and public spaces.

Preferred 3-speed regulator click on the link



PARAMETERS

  • 1. Rated voltage - 230V
  • 2. Frequency - 50Hz
  • 3. Rated power - 63W
  • 4. Capacity max 500 m3/h
  • 5. Insulation  class - I
  • 6. Type of work  - S1
  • 7. Degree of protection  - IP44
  • 8. Maximum operating temperature -  65 C
  • 9. Weight 2.6kg
  • 9. Built-in thermal shutdown
  • 10. Packaging Type: Unit Carton

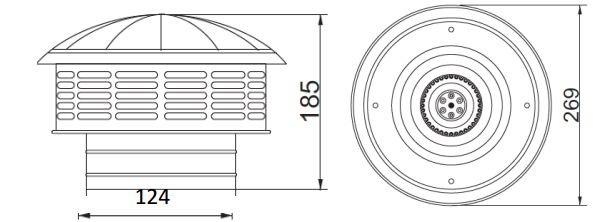

FAN DIMENSIONS:

Brand Wentec
Status New
Size 125 mm
Material PCV
Hole diameter 125 mm
Kind roof
Typ Roof fan
Packaging Condition oryginalne
Energy efficiency class A+
Voltage / Power 230V
