• VWSM 315 Graphite

The Symbol : 9548

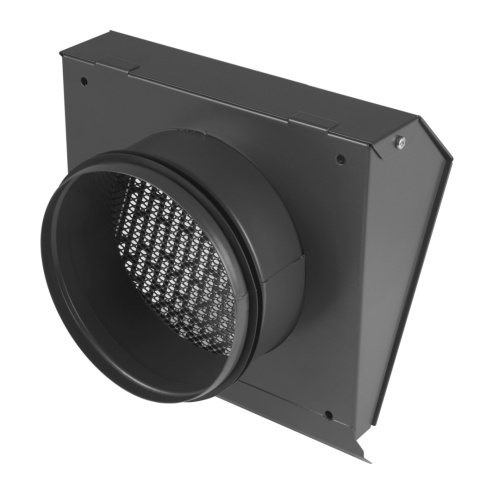

The VWSM 315 Graphite wall-mounted ventilation intake is an excellent solution for mechanical ventilation systems with recuperation. This high-quality launcher has been designed for outdoor use, both in residential and public buildings. The launcher is equipped with a drip cap as standard, which effectively protects the wall against water stains. In addition, it has a mesh protecting the outlet opening, which prevents unwanted elements from getting inside the system.

opak Add to wishlist
Shipping within 24 hours
Shipping price The Lack Of
The Availability Of Duża dostępność
The Weight Of The 1 kg
EAN 5902729779548

Phone order: +48606376838

Exhaust / Wall-mounted air intake with drip cap VWSM fi 315 Graphite

Duct endings in mechanical ventilation systems with recuperation. For exterior use, residential and public buildings. As standard, it is equipped with adrip cap protecting the wall against damp patches and a net protecting the outlet opening. The geometry of the perpendicular to the wall air discharge with side closure prevents the wall from dirty from used air. Specially designed geometry ensures minimal resistance/pressure drop of ejected/drawn air. A rubber gasket facilitates installation and protects the outflow of water from the ventilation duct. Mounting holes in the corners allow you to screw to the wall. The lateral location of the mounting screws of the detachable front of the launcher facilitates installation and disassembly for maintenance.



  • 0.7 mm thick galvanized steel sheet, powder coated with the use of passivation technology for additional protection against corrosion
  • Attractive colours used in current buildings
  • Outlet Opening Protection Net
  • Mounting flange with double-lip seal
  • Quick and easy installation (4 mounting holes in the corners).





Flow characteristics:

Brand Awenta
Status New
Colour Graphite
Material galvanized sheet
Hole diameter 315 mm
Kind Air intakes/exhaust vents
Typ Wall-mounted ventilation air intake
Packaging Condition oryginalne
