  • Wall fan FPT FERONO 450 - 5500 m3 / h

The Symbol : 5781855011

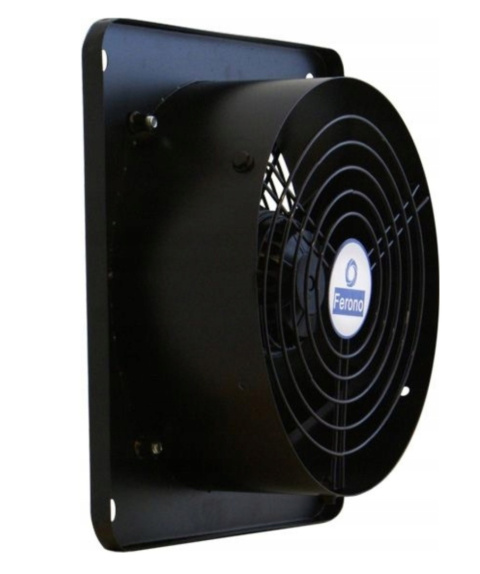

The FPT 450 Ferono axial fan, thanks to the possibility of horizontal and vertical installation, is used in general ventilation of industrial facilities, e.g. warehouses, warehouses, workshops, production halls, greenhouses, breeding rooms, as well as for ventilation of smaller rooms, i.e. offices, shops, garages.

589.00
opak Add to wishlist
Reviews
Shipping within 24 hours
Shipping price The Lack Of
The Availability Of Duża dostępność
The Weight Of The 3 kg
EAN 5904326322592

Phone order: +48606376838

FPT450 AXIAL WALL FAN

Ferono axial fans, thanks to the possibility of horizontal and vertical installation, are used in general ventilation of industrial facilities, e.g. warehouses, warehouses, workshops, production halls, greenhouses, breeding rooms, as well as they are used for ventilation of smaller rooms, i.e. offices, shops, garages.

TECHNICAL SPECIFICATIONS

Model FPT450
Diameter (mm) 450
Voltage (V) 230
Frequency (Hz) 50
Power (W) 190
Current (A) 0,86
Revolutions (RPM) 1350
Air flow (m³/h) 5500
Air Pressure (Pa) 85
Capacitance (μF/V) 8 / 450
Net Weight (kg) 12
Gross Weight (kg) 13

ENGINE

Brushless, state-of-the-art motor adapted to voltage regulation. It has built-in thermal protection, implemented by a winding temperature sensor. The very high insulation class of the motor windings F and the IP44 tightness class guarantee trouble-free operation.

ADVANTAGES

  • Mesh protection of the rotor on both sides
  • State-of-the-art fan design for high performance
  • At a low volume at the same time
  • Motor and fan propellers made of metal
  • Double bearings extend the life of the fan
  • Electrical strength: 1500V AC/50-60Hz for 1 min leakage current <5mA
  • Insulation resistance: 10 MΩ at 500V DC between wire and frame
  • High insulation class of copper conductor: F
  • Operating Temperature: - 20°C ~ 80°C
  • Operating Relative Humidity Range: 20% - 85%
  • Ingress protection: IP44

DIMENSIONS

Model FPT450
A (mm) 440
B (mm) 470
C (mm) 520
D (mm) 152.5
E (mm) 12
F (mm) 60
G (mm) 13

Brand:
Ferono
Status:
New
Material:
galvanized sheet
Waga produktu z opakowaniem jednostkowym:
5 (2)
Diameter:
450
Packaging Condition:
oryginalne
Energy efficiency class:
A
