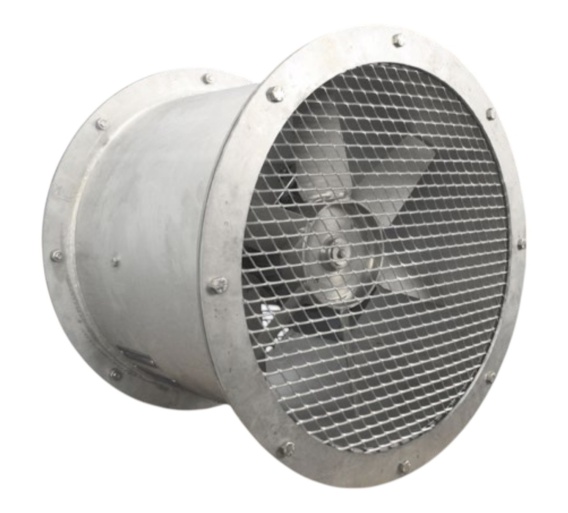

Wentylator przeciwwybuchowy WOK-630/EX - 880 rpm

(0)

Wentylator przeciwwybuchowy WOK-630/EX - 880 rpm

Name: Wentylator przeciwwybuchowy WOK-630/EX - 880 rpm
Brand: Konwektor
SKU: 5905679893531
Price: 11685.00 EUR
Availability: InStock

The Symbol : WOK-630-EX-880

Explosion-proof fan WOK-630/EX 880 rpm | Ex 2(3)G | 12000...

The Availability Of : Mało 20 opak

Price: 11685.00

Zobacz inne modele:

opak

SMS: +48606376838

Shipping within : 5 days

EAN :

5905679893531

Opis produktu

Wentylator WOK-315/EX - wersja 1370 rpm. Urządzenie przeciwwybuchowe do pracy w strefach Ex, wykonane w solidnej obudowie (stal/kwasoodporna - zgodnie z serią), przystosowane do pracy jako wyciąg.

Dane techniczne

Wydajność: 1530 m³/h
Spiętrzenie: 210 Pa
Głośność: 65 dB(A)
Waga: 15 kg
Moc: 0.18 kW
Obroty: 1370 min⁻¹
Prąd: 0.6 A
Zasilanie: 400 V
Stopień ochrony: IP54
Max. temp. pracy: 40°C
Klasa EX: Ex 2(3)G

Wymiary

D: 300 mm
dp: 355 mm
L1: 150 mm
L2: 330 mm
d: 10 mm
n: 8

Bezpieczeństwo (UE)

ATEX: Ex 2(3)G
CE, LVD, EMC, Dyrektywa Maszynowa
Zakres temp. medium: -15°C do +40°C (dla WOK/EX); max. temp. pracy: 40°C
Montaż i podłączenie przez osoby uprawnione; praca w układzie wyciągowym.

Parameters :

Brand:

Konwektor

Material:

galvanized sheet

Packaging Condition:

oryginalne

Status:

New

Voltage / Power:

400V

Safety Information

Safety Information – WOK/EX

WOK/EX fans are designed to work as an exhaust in duct installations. They can work with the temperature controller and speed controllers (selected for the requirements of the Ex zone).

The design of the equipment uses acid-resistant sheet; The inlet and outlet are protected with acid-resistant meshes. The drive is an explosion-proof engine. The power cord should be routed through the hole with the rubber grommet in the housing.

Permissible operating conditions: medium temperature from –15°C to +40°C, IP54 protection. Exceeding these values may reduce the level of protection and durability of the device.

Ex classification in WOK/EX series cards: Ex 2(3)G. Note: Ex II2G version available only in acid-resistant materials (according to the manufacturer's note).

Rules of safe use: installation, connection and commissioning should be carried out by persons qualified to work in hazardous areas; do not remove protective nets; use only equipment (regulators, protections) approved for operation in a given zone; periodically check the mechanical and electrical condition of the connections and the tightness of the ducts; operate the device according to the parameters from the card (flow, compression, temperature). The basic requirements and purpose (extractor, control equipment, materialization, IP/temperature) result from the documentation of the WOK/EX series.
