Rooftec 315/3900S roof fan

4690.00
opak Add to wishlist
Reviews
Shipping within 24 hours
Shipping price The Lack Of
The Availability Of Duża dostępność
The Weight Of The 25 kg
EAN 5905679890936

Phone order: +48606376838

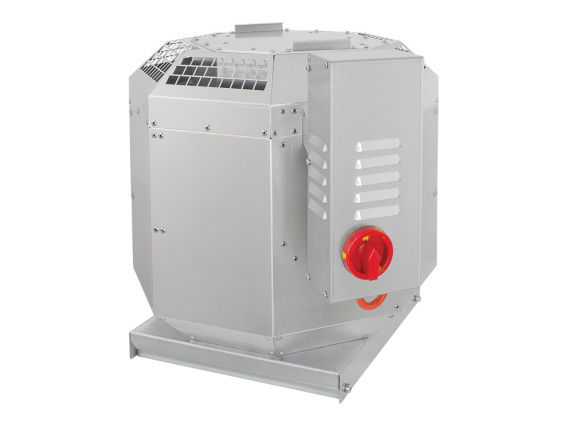

Rooftec 315/3900S roof fan from Harmann



Construction:

A rooftop radial fan with vertical discharge, the motor of which is mounted outside the stream of flowing air. The fan has been adapted to pump air with a maximum temperature of up to 1200C.

The enclosure is made of profiled AlMg3 aluminum sheet resistant to sea water and galvanized steel sheet (mounting plate, internal brackets). The octagonal shape of the fan housing has reduced the pressure loss of the air flow.

As standard, each fan has an air outlet protected by aluminum perforated sheet, a service switch and a drip tray for draining condensate and rainwater from the inside of the fan. The design allows the housing to be tilted in order to carry out servicing operations within the rotor (inspections, cleaning).

Temperature range:

-25 ÷ 80 °C - ambient temperature depending on the model,
120 °C - maximum temperature of the pumped medium.

Rotor:

A new generation dynamically balanced rotor in class G2.5, type B - with blades inclined backwards, made of powder-coated steel sheet. The rotors of the three-phase models are additionally equipped with a Taperlock collet, which provides better balancing quality and higher operational stability.

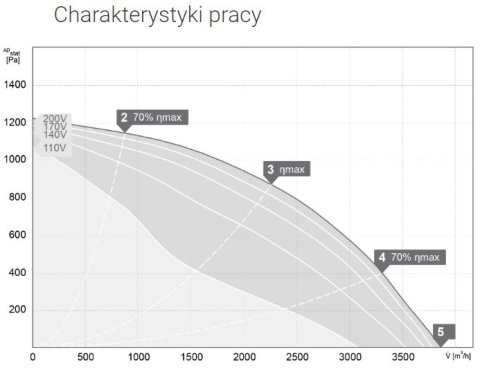

Productivity : 3860 m3/h

Compression max :  1220 Pa

Current: 7.1 A

Voltage: 230V

Fan dimensions:

TYPE And [mm] B [mm] [mm] D [mm] E [mm] F [mm] G [mm] H [mm] And [mm] øk [mm] ød [mm] J [mm]
ROOFTEC 2-225/1700S 467 514 363 452 341 482 311 ±4 355 ±2 245 9(x4) 213 V16X1 5(x6)
ROOFTEC 2-250/2200S 467 514 363 452 341 482 311 ±4 355 ±2 245 9(x4) 213 V16X1 5(x6)
ROOFTEC 2-280/3000S 512 614 464 569 441 551 411 ±4 435 ±2 330 1104) 286 V16X1 5(x6)
ROOFTEC 2-315/3900S 512 614 464 569 441 551 411 ±4 435 ±2 330 1/04) 286 MOXI 5(x6)
ROOFTEC 4-400/4200S 565 742 625 722 602 604 572 ±4 596 ±2 450 104) 438 M6X1 5(X6)




Brand:
Harmann
Status:
New
Material:
galvanized sheet
Hole diameter:
315 mm
Typ:
Roof fan
Packaging Condition:
oryginalne
