WPT Industrial Transport Fan
New
The Symbol :
9892824
The WPT 100 400v industrial centrifugal fan is an efficient device for transporting air, shavings, granulates or polystyrene in installations with high flow resistance. Excellent in PET production lines. The motors operate at temperatures between -15°C and +40°C.
1939.00
Reviews | |
Shipping within | 5 days |
Shipping price | The Lack Of |
The Availability Of | Średnia dostępność 30 opak |
The Weight Of The | 15 kg |
The bar code | 5905679892824 |
EAN | 5905679892824 |
Phone orde SMS: +48606376838

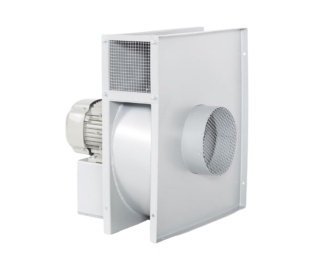

Industrial centrifugal fan WPT 100 400V
WPT – Centrifugal Fans
They are designed for transporting air, shavings, granulates, polystyrene, etc., in installations with relatively high flow resistance.
They are also used for in-line transportation of PET beverage bottles.
• The motors used can operate at ambient temperatures from -15°C to +40°C and relative humidity up to 95%.
Specifications:
Type Type |
Efficiency Capacity m³/s m³/h |
Accumulation Compress [Pa] |
Volume Noise [dB(A)] |
Mass Weight [kg] |
Power Power [kW] |
Turnover Rotations [min⁻¹] |
Current IN IN Current [A] |
Power Feeding |
Security Senior Protection rate |
Max operating temperature Max working temp. [°C] |
---|---|---|---|---|---|---|---|---|---|---|
WPT-100 | 0,36 1300 |
1800 | 87 | 15,5 | 0,55 | 2800 | 4,0 | 1~ | IP 54 | 40 |
WPT-100 (3~) | 0,36 1300 |
1800 | 87 | 15 | 0,55 | 2800 | 1,35 | 3~ | IP 54 | 40 |
WPT-250 | 0,40 1450 |
1800 | 92 | 19 | 0,75 | 2820 | 5,2 | 1~ | IP 54 | 40 |
WPT-250 (3~) | 0,40 1450 |
1800 | 92 | 17 | 0,75 | 2800 | 1,9 | 3~ | IP 54 | 40 |
WPT-280/a | 0,69 2500 |
2000 | 94 | 28 | 1,1 | 2810 | 7,0 | 1~ | IP 54 | 40 |
WPT-280/a (3~) | 0,69 2500 |
2000 | 94 | 26 | 1,1 | 2780 | 2,5 | 3~ | IP 54 | 40 |
WPT-280 | 0,72 2600 |
2100 | 94 | 28 | 1,5 | 2800 | 3,2 | 1~ | IP 54 | 40 |
WPT-280 (3~) | 0,72 2600 |
2100 | 94 | 26 | 1,5 | 2835 | 2,9 | 3~ | IP 54 | 40 |
Fan dimensions:
Brand:
Konwektor
Energy efficiency class:
A
Hole diameter:
125 mm
Material:
galvanized sheet
Status:
New
Voltage / Power:
400V
Reviews are not verified
-
Polecamy , bardzo dobry wentylator do odciągu trocin , wydajność i solidność na duży plusStolarnia Police (2024-11-19)The Whole ThingThe Functionality Of ThePrice
