  • SFA condensate pump SANICONDENS Clim Classic

The Symbol : 11012464931

SFA condensate pump SANICONDENS Clim Classic The condensate pump for air conditioning is supplied with all mounting accessories and connectors that allow very easy installation. The device consists of two basic components: the takeover block and the pump block.

259.00
opak Add to wishlist
Reviews
Shipping within 24 hours
Shipping price The Lack Of
The Availability Of Duża dostępność
The Weight Of The 0.15 kg
EAN 3308815077574

Phone order: +48606376838

SFA condensate pump SANICONDENS Clim Mini Classic

Small pump for installation inside the air conditioner

  • Very quiet operation of 21dB
  • Transparent control module
  • Installation inside the mounting strip

Sanicondens Clim Mini is a pump designed to drain condensate from air conditioning equipment. Its small size allows it to be used in a Multi-Split air conditioner (mounted on the wall).

The pump is supplied with all mounting accessories and connectors that allow for very easy installation. The device consists of two basic components: the takeover block and the pump block. The condensate first goes to the transfer block (located on the drip tray, up to 2 m away from the pump block). When the condensate level is high, the pump turns on and sucks it in to drain it. IP64 ingress protection, possibility of connecting an external alarm. The noise level is only 21 dB(A).

Technical data sheet SANICONDENS Clim Mini

  • diameter of entrances - 17 mm
  • pressure pipe diameter - 8-10 mm
  • Power supply - 220-240 V/50 Hz
  • Degree of protection - IP20
  • Sound level - 21 dB(A)
  • Horizontal pumping max -60 m
  • Vertical embossing - max 6 m
  • Max. capacity - 15 L/h
  • Motor power - 22 W
  • Max. temperature of inflowing condensate - 35°C
  • Connection options - air conditioners up to 8kW

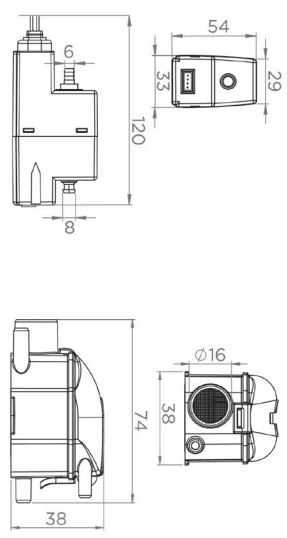

Module dimensions:



The SANICONDENS Clim Mini is supplied with a flexible module connection tube (1.5m), a mounting bracket, a vent tube and a power cable.

Brand SFA
Status New
Waga produktu z opakowaniem jednostkowym 0.5 (3)
Kod producenta 445912
Packaging Condition oryginalne
Energy efficiency class A+
Voltage / Power 230V
